SKU
SS-Stainless-Steel-Flat-Top
Stainless Steel Flat Top Standoff
Out of stock
Only %1 left
Need More Time?
Save this item for later to come back to at a later date.Have Some Questions?
Reach out to us with your question and one of our experts will be happy to help. support@roycehanging.comDescription

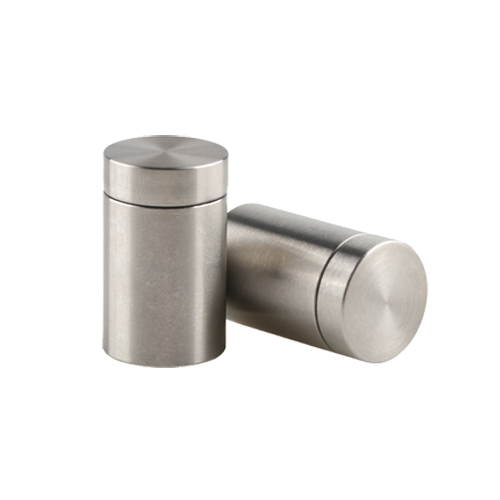

The Stainless Steel Flat Top Stainless-Steel Standoff is perfect for suspending, glass, wood, acrylic, metal and stone.
Made from 304 grade Stainless - Steel this item can be used in both indoor and outdoor applications and will not rust.
The Stainless Steel Standoff is ideal for high traffic areas that are indoor-outdoor use. It is suggested to use the stainless steel standoffs in places where there is frequent climate change.
Standoffs are sold as single units.
The Stainless Steel Standoff could be used in any of the following applications:
- Hotels
- Lobbies
- Restaurants
- Swimming Pool Area
- Gyms
- Country Clubs
- Municipal Buildings
- Court Houses
- Police Stations
- Fire Stations
- Car Rental Locations
- Car Dealerships
- Hospitals
- Airports
- Bus Stations
- Train Stations
| Material | Stainless Steel |
|---|---|
| Category Type | Standoff |
| Manufacturer | RoyceHanging |
| SKU | SS-Stainless-Steel-Flat-Top |

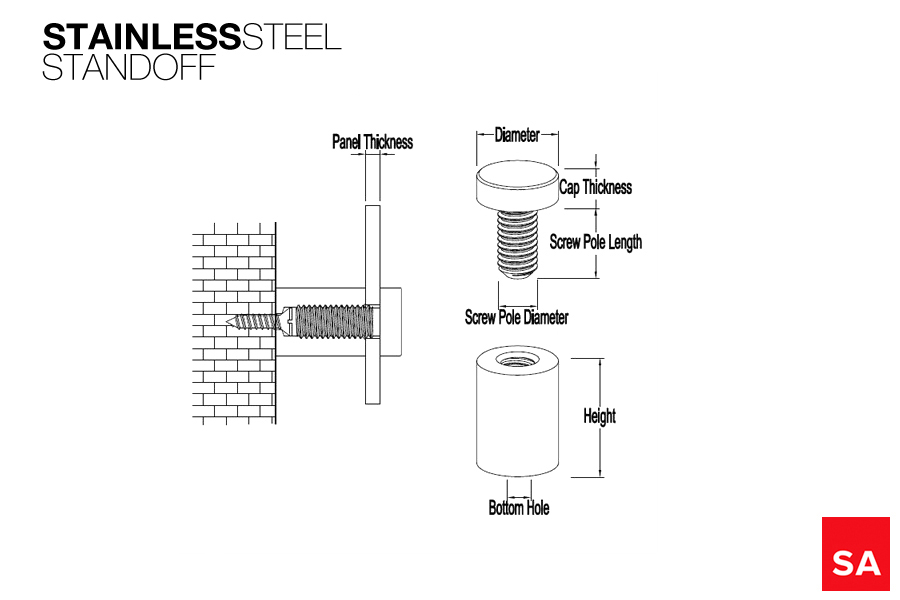

| Additional Info | Product Information: Stainless-Steel Standoffs 13mm x 13mm = 0.51" Diameter x 0.66"(Long With Cap) Cap Thickness: 4mm / 0.15" / 5/32 Frac Barrel Without Cap: 13mm / 0.51" / 33/64 Frac Screw Pole: Diameter: 6.5mm / 0.26" / 1/4 Frac ScrewPole Length: 11.5mm / 0.45" / 29/64 Frac Bottom Hole: 4mm / 0.15" / 1/16 Frac The 13mm x 13mm Standoff supports panels Max Thickness: 1/4” 13mm x 19mm Standoff = 0.51" Diameter x 0.90" (Long With Cap) Cap Thickness: 4mm / 0.15" / 5/32 Frac Barrel without Cap: 19mm / 0.74" / 3/4 Frac Pole: Diameter: 6.5mm / 0.26" / 1/4 Frac Screw Pole Length: 16.5mm / 0.63” Screw Hole: 4mm / 0.15" / 1/16 Frac The 13mm x 19mm Standoffsupports panels panels Max Thickness: 3/8” 13mm x 25mm Standoff = 0.51" Diameter x 1.14" (Long With Cap) Thickness: 4mm / 0.15" / 5/32 Frac Screw without Cap: 25 mm / 0.98” Screw Pole Diameter: / 0.09" / 3/32 Frac Screw Screw Pole Length: 22.mm / 0.86" / 55/64 Frac Bottom Hole: 4mm / 0.15" / 1/16 Frac The 13mm x 25mm Standoff supports panels Max Thickness: 1/2”
19mm x 19mm Standoff 0.74" Diameter x 1" (Long With Cap) Cap Thickness: 6.35mm / 0.25" / 1/4 Frac Barrel without Cap: 19mm / 0.74" / 3/4 Frac Screw Pole: Diameter: 9mm / 0.35" / 23/64 Frac Screw Pole Length: 17mm / 0.66" / 43/64 Frac Bottom Hole: 4mm / 0.15" / 1/16 Frac The 19mm x 19mm Standoff supports panels Max Thickness: 1/4” 19mm x 25mm Standoff = 0.74" Diameter x 1.23" Long With Cap) Cap Thickness: 6.35mm / 0.25" / 1/4 Frac Barrel without Cap: 25mm / 0.98" / 63/64 Frac Screw Pole: Diameter: 8mm / 0.31" / 5/16 Frac Screw Pole Length: 15mm / 0.59" / 19/32 Frac Bottom Hole: 4mm / 0.15" / 5/32 Frac The 19mm x 25mm Standoff supports panels Max Thickness: 1/2” 25mm x 25mm Standoff = 0.98" Diameter x 1.25" (Long With Cap) Cap Thickness: 6.35mm / 1/4” Barrel Length without Cap: 25.4mm / 1” Screw Pole: Diameter: 6.35mm / 1/4” Screw Pole Length: 22.5mm / 7/8” Bottom Hole: 4mm / 0.15" / 5/32 Frac The 25mm x 25mm Standoff supports panels Max Thickness: 1/2” 25mm x 40mm Standoff = 0.98" Diameter x 1.82" (Long With Cap) Cap Thickness: 6.35mm / 0.25" / 1/4 Frac Barrel Length without Cap: 40mm / 1.57" / 1-37/64 Frac Screw Pole Diameter: 9.3mm / 0.36" / 23/64 Frac Screw Pole Length: 34mm / 1.33" / 1-11/32 Frac Bottom Hole: 6mm / 0.23" / 15/16 Frac The 25mm x 40mm Standoff supports panels panels Max Thickness 1” |
| Usage | Home / Office / Professional / Industrial |
Quality

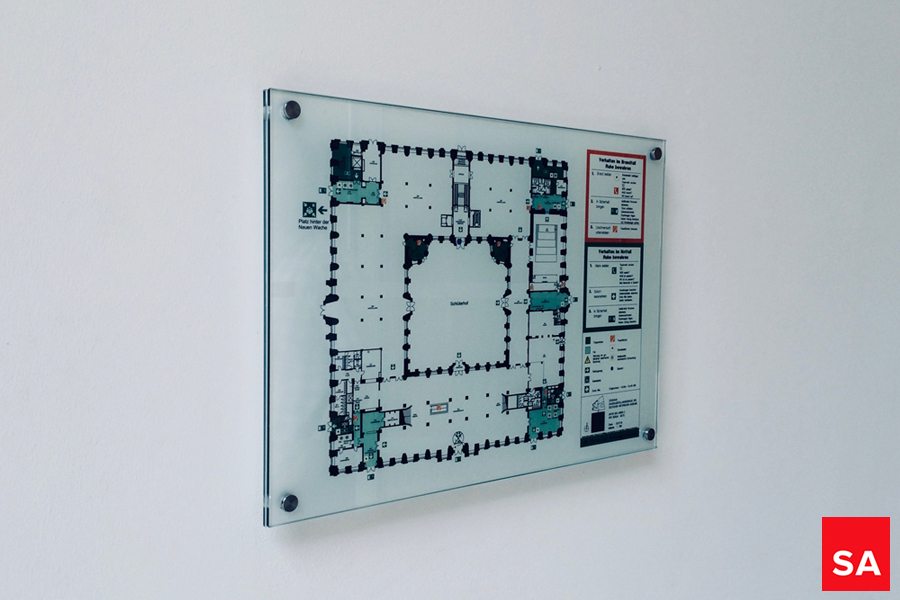

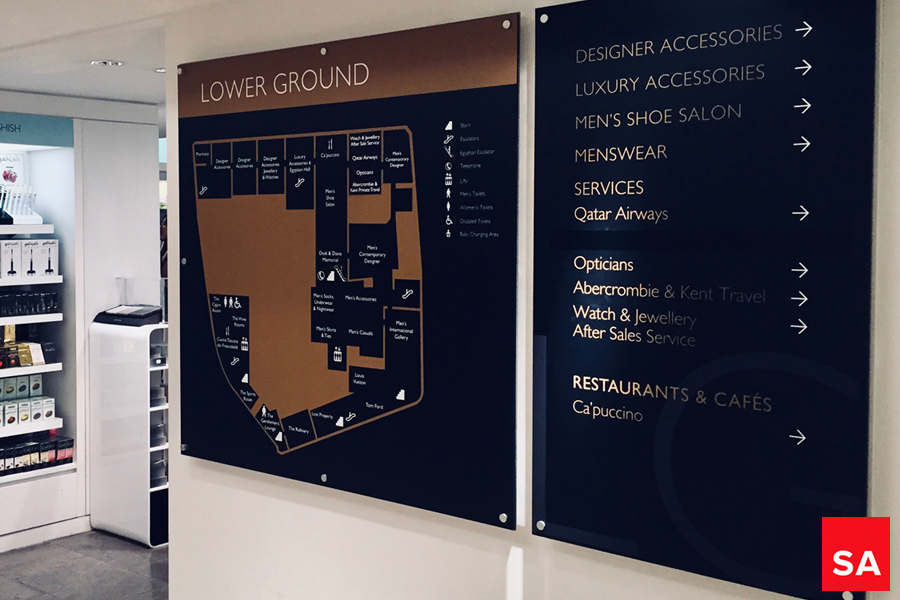

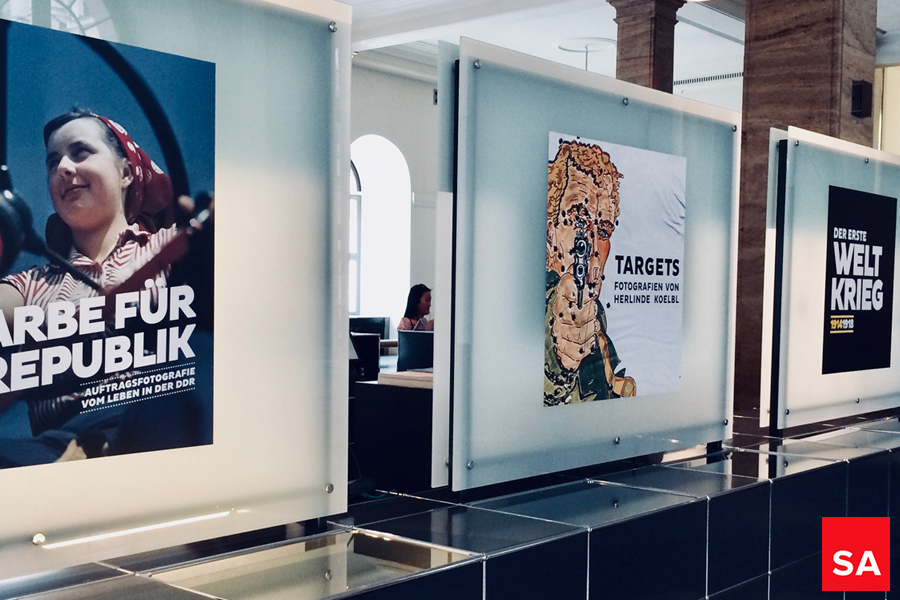

Customer Image Gallery
The Stainless Steel Flat Top Standoff as well as all our products have been made with quality in mind. We use high quality materials to ensure our products last. Check out some of our customer projects.
Compare Standoffs
Flat Top Standoff |
Stainless Steel Flat Top Standoff |
Stainless Steel Security Standoff |
Single Sided Cable Standoff |
Double Sided Cable Standoff |
Large Multilayer Standoff |
Adjustable Edge Grip Standoff |
4 Way Sign Fixing Hub Standoff |
|||
| Usage | Home/Office Professional/Industrial |
Home/Office Professional/Industrial |
Home/Office Professional/Industrial |
Home/Office Professional/Industrial |
Home/Office Professional/Industrial |
Home/Office Professional/Industrial |
Home/Office Professional/Industrial |
Home/Office Professional/Industrial |
||
| Material | Multiple | Stainless Steel | Stainless Steel | Aluminum | Aluminum | Aluminum | Aluminum | Brass | ||
| View Product | View Product | View Product | View Product | View Product | View Product | View Product | View Product | |||
| Weight capacity may vary based on installation and condition of structure ceiling or walls, rated weight of for comparison purposes only. | ||||||||||
